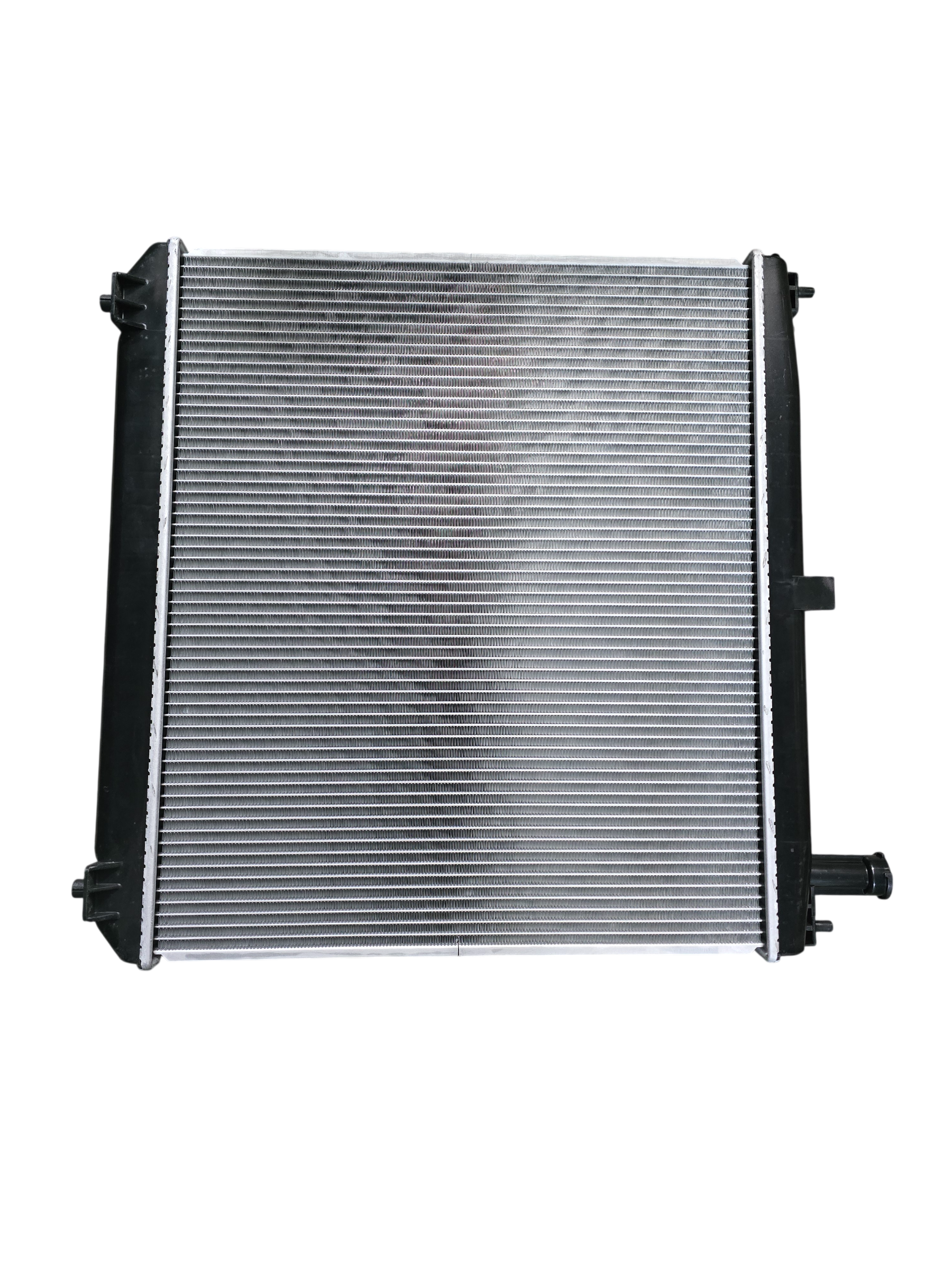

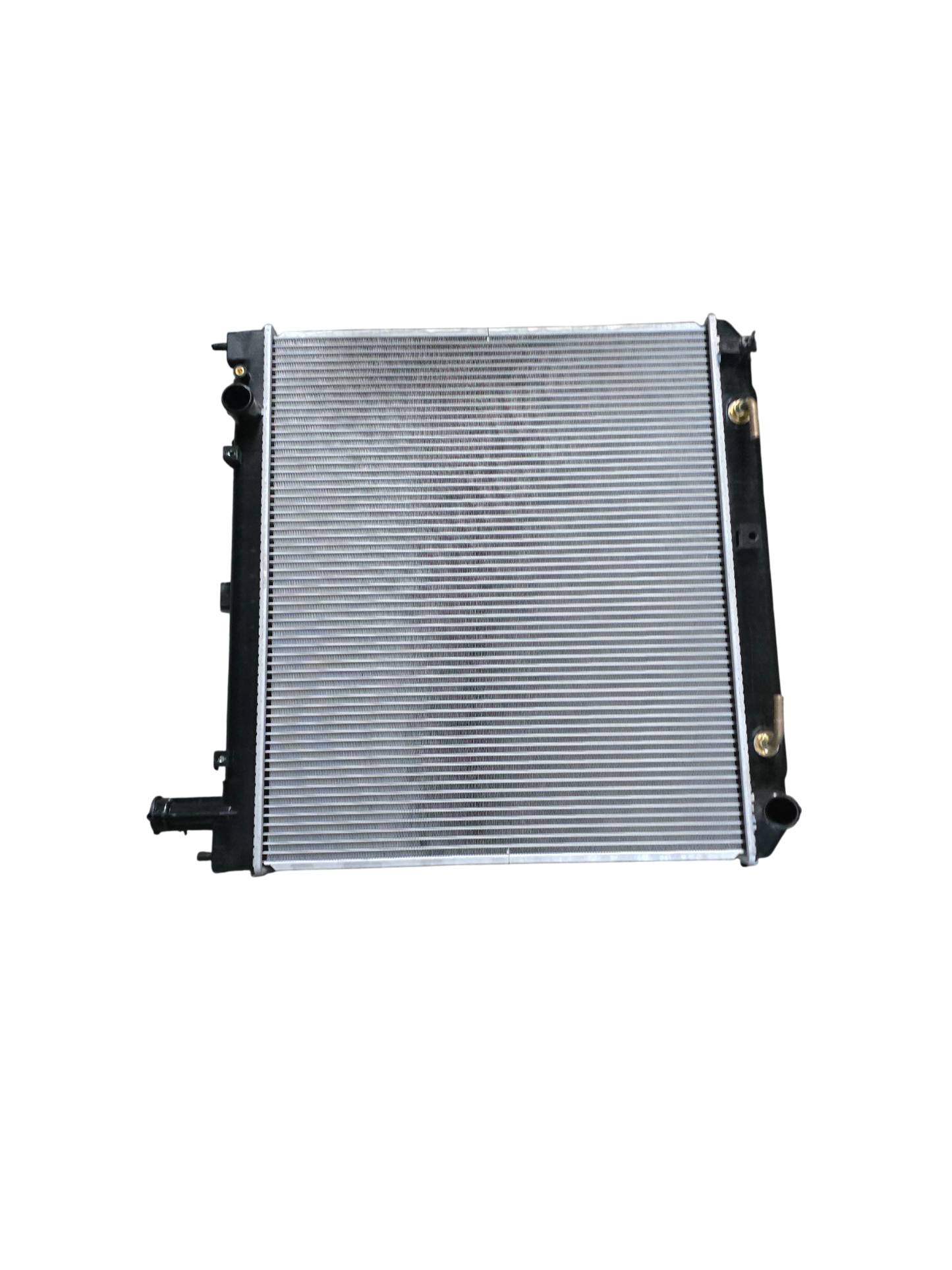

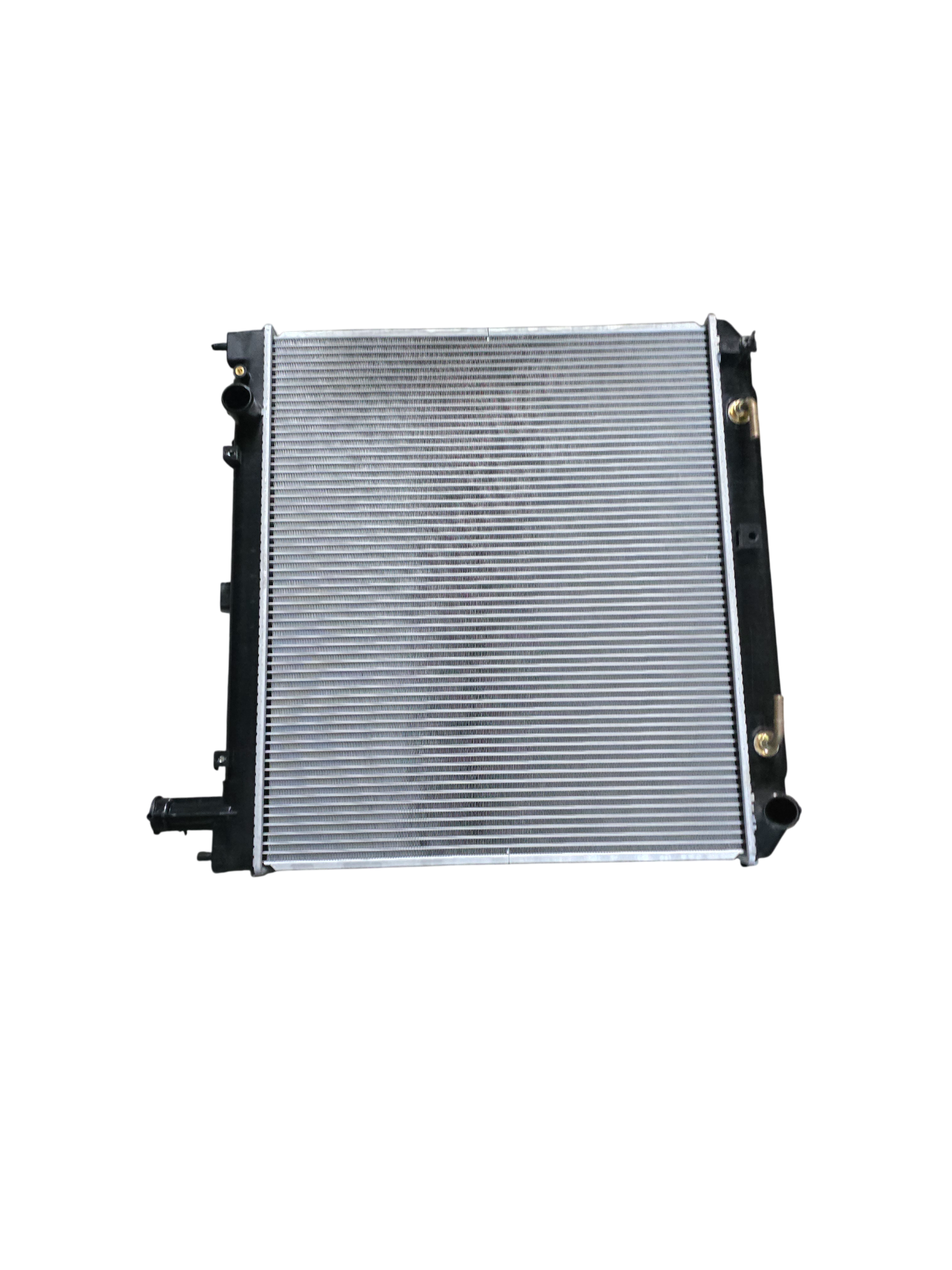

Toyota HiAce SBV RCH12 RCH22 Auto Radiator 26mm 1995–2003 | KWM KRA20407

Toyota HiAce SBV Automatic Radiator Replacement

This KWM KRA20407 replacement radiator is designed for compatible Toyota HiAce SBV RCH12 and RCH22R models with 2.0L / 2.4L engine applications and automatic transmission. Featuring a 26mm core, it is suitable for replacing a leaking, damaged, blocked or overheating radiator.

The supplied fitment notes mention Toyota SBV HiAce 1999–2003, while the radiator description lists HiAce SBV RCH12 / RCH22R 1995–2003. Please confirm your VIN, engine type, transmission type, hose positions and original radiator dimensions before ordering.

Key Features

• KWM replacement radiator
• Part number: KRA20407
• Suitable for compatible Toyota HiAce SBV models
• Listed for RCH12 / RCH22R applications
• Suitable for 2.0L / 2.4L engine applications
• Designed for automatic transmission vehicles
• 26mm core specification
• Direct replacement-style cooling component
• Helps restore proper engine cooling performance
• New replacement part
• Professional installation recommended

Vehicle Compatibility

This part is listed for:

• Make: Toyota
• Model: HiAce SBV
• Series Codes: RCH12 / RCH22R
• Year Range: 1995–2003
• Additional Supplied Fitment Note: 1999–2003
• Engine: 2.0L / 2.4L
• Transmission: Automatic
• Part Type: Radiator
• Core Thickness: 26mm
• Brand: KWM
• Part Number: KRA20407

Fitment information is provided as a guide only. Toyota HiAce SBV radiators can vary depending on engine type, transmission configuration, hose outlet position, fan shroud arrangement and original radiator dimensions. Please provide your VIN if you would like us to confirm compatibility before purchase.

KWM Automatic Radiator Replacement Part

The radiator is a key part of the engine cooling system. It transfers heat away from the coolant to help maintain stable engine operating temperatures during daily driving, delivery use and work conditions.

A worn or damaged radiator can cause coolant leaks, overheating, low coolant levels, corrosion, blocked cooling passages or poor heater performance. Replacing the correct radiator helps restore cooling efficiency and reduce the risk of overheating-related engine damage.

Part Details

• Product: Automatic Transmission Radiator
• Vehicle: Toyota HiAce SBV
• Series Codes: RCH12 / RCH22R
• Year Range: 1995–2003
• Engine: 2.0L / 2.4L
• Transmission: Automatic
• Core Thickness: 26mm
• Brand: KWM
• Part Number: KRA20407
• Condition: New replacement part
• Installation: Professional installation recommended

Cross Reference Numbers

• KWM: KRA20407
• JR Reference: JR2016J
• Aftermarket Reference: TOY019PACM

Frequently Asked Questions

Does this fit all Toyota HiAce SBV models from 1995 to 2003?

Not necessarily. This radiator is listed for compatible Toyota HiAce SBV RCH12 / RCH22R automatic models with 2.0L / 2.4L engine applications. Please confirm your VIN, engine type, original radiator number, hose locations and cooling-system layout before ordering.

Why does the listing mention both 1995–2003 and 1999–2003?

The supplied vehicle note states Toyota SBV HiAce 1999–2003, while the radiator description lists HiAce SBV RCH12 / RCH22R 1995–2003. Because of this, VIN confirmation is recommended before purchase.

Is this suitable for manual transmission vehicles?

No. This radiator is listed for automatic transmission applications. Automatic radiators can have transmission-cooler fittings that manual vehicles do not require.

What does 26mm core mean?

The 26mm core refers to the approximate thickness of the radiator cooling core. Compare your original radiator dimensions, mounting points and hose positions before purchase.

Does this include fans, hoses or coolant?

No. This listing is for the radiator only unless otherwise stated. Cooling fans, hoses, radiator cap, coolant and mounting hardware are generally sold separately.

Can you confirm fitment using my VIN?

Yes. Send us your VIN and we can compare the required radiator specification against this item before dispatch.
