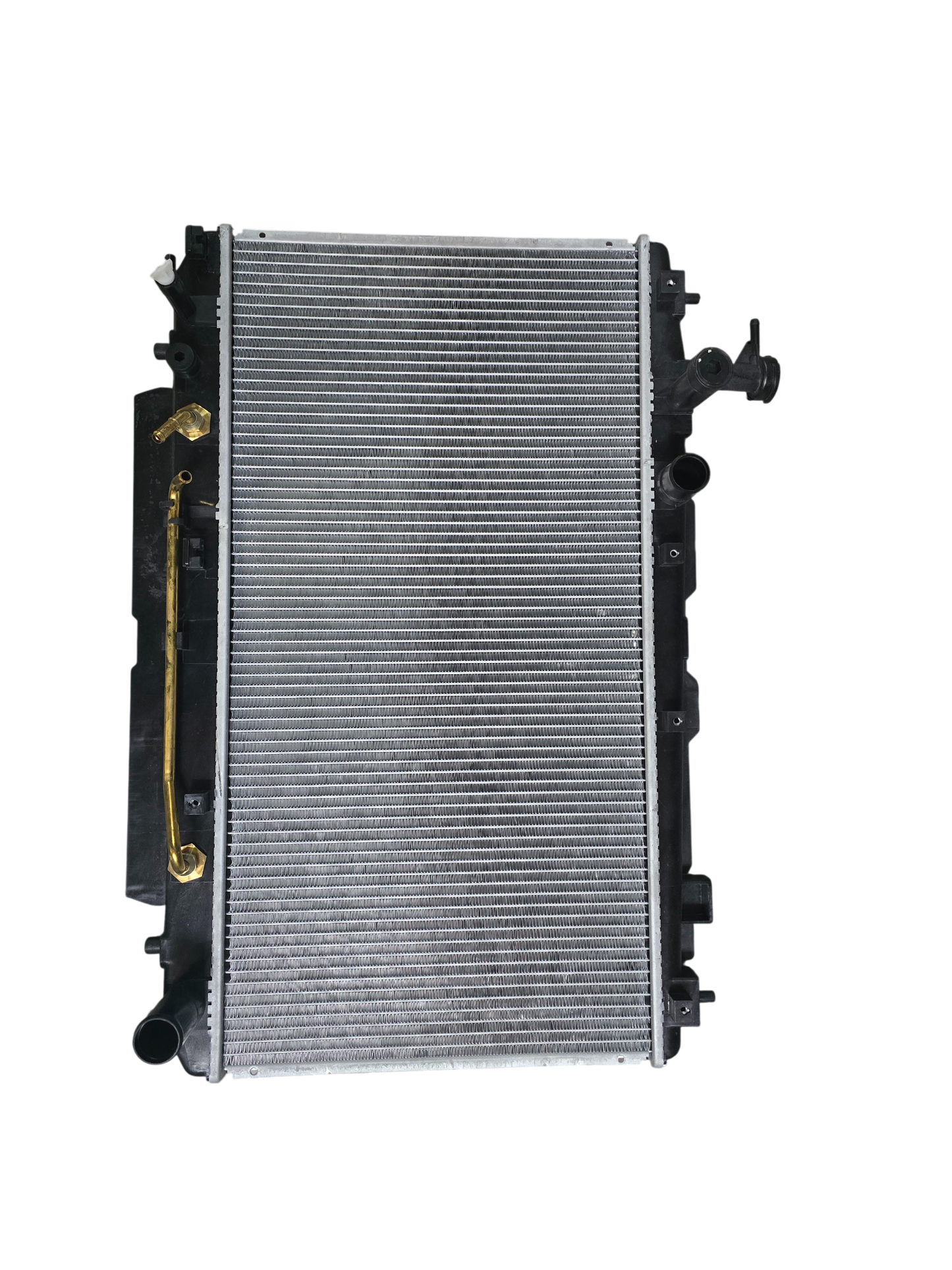

Toyota RAV4 ACA20R–ACA23R Auto Radiator 16mm Straight Fitting 2000–2005 | Kiwami KRA20155

Toyota RAV4 Automatic Radiator 2000–2005 – Straight Fitting

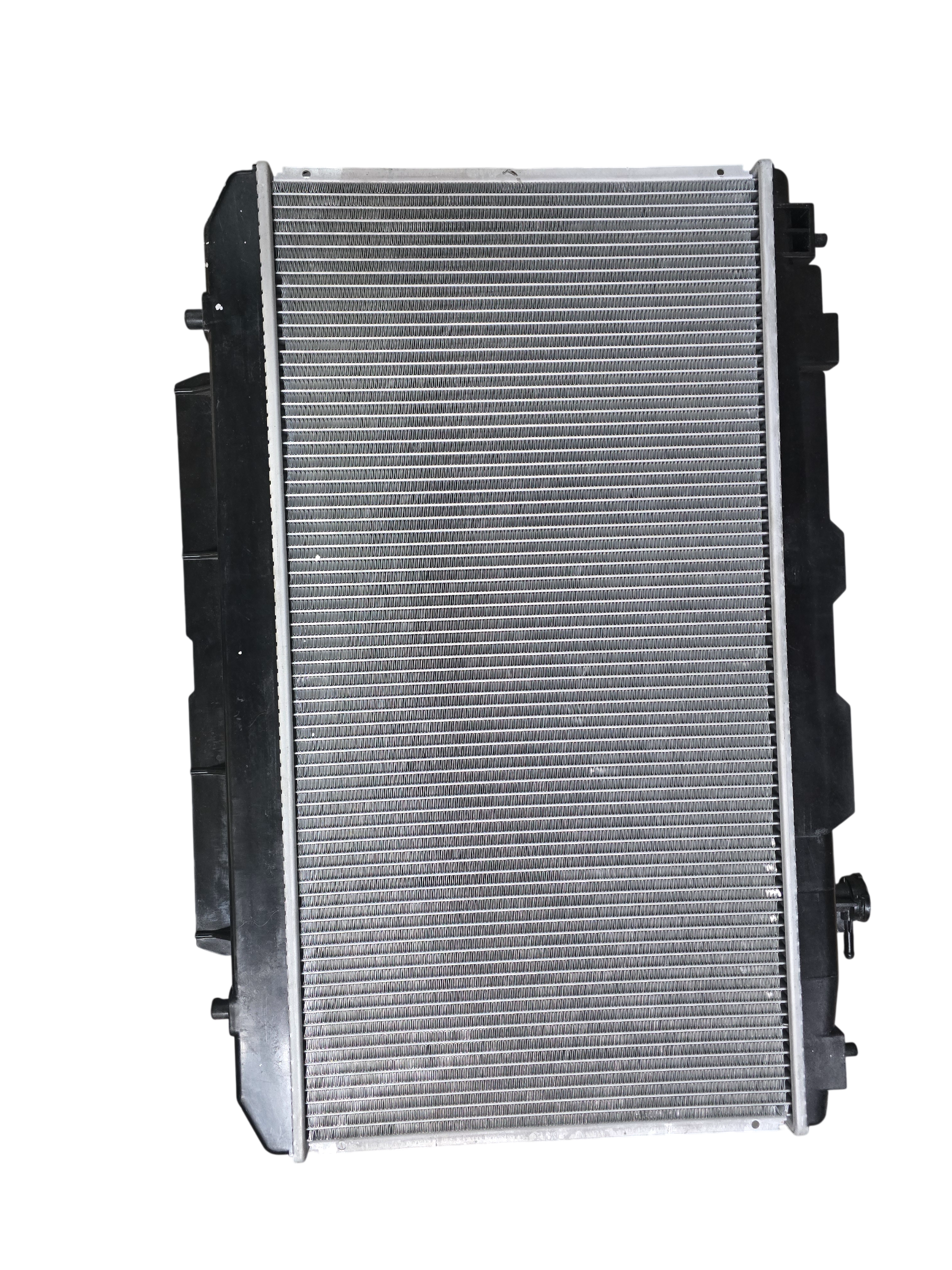

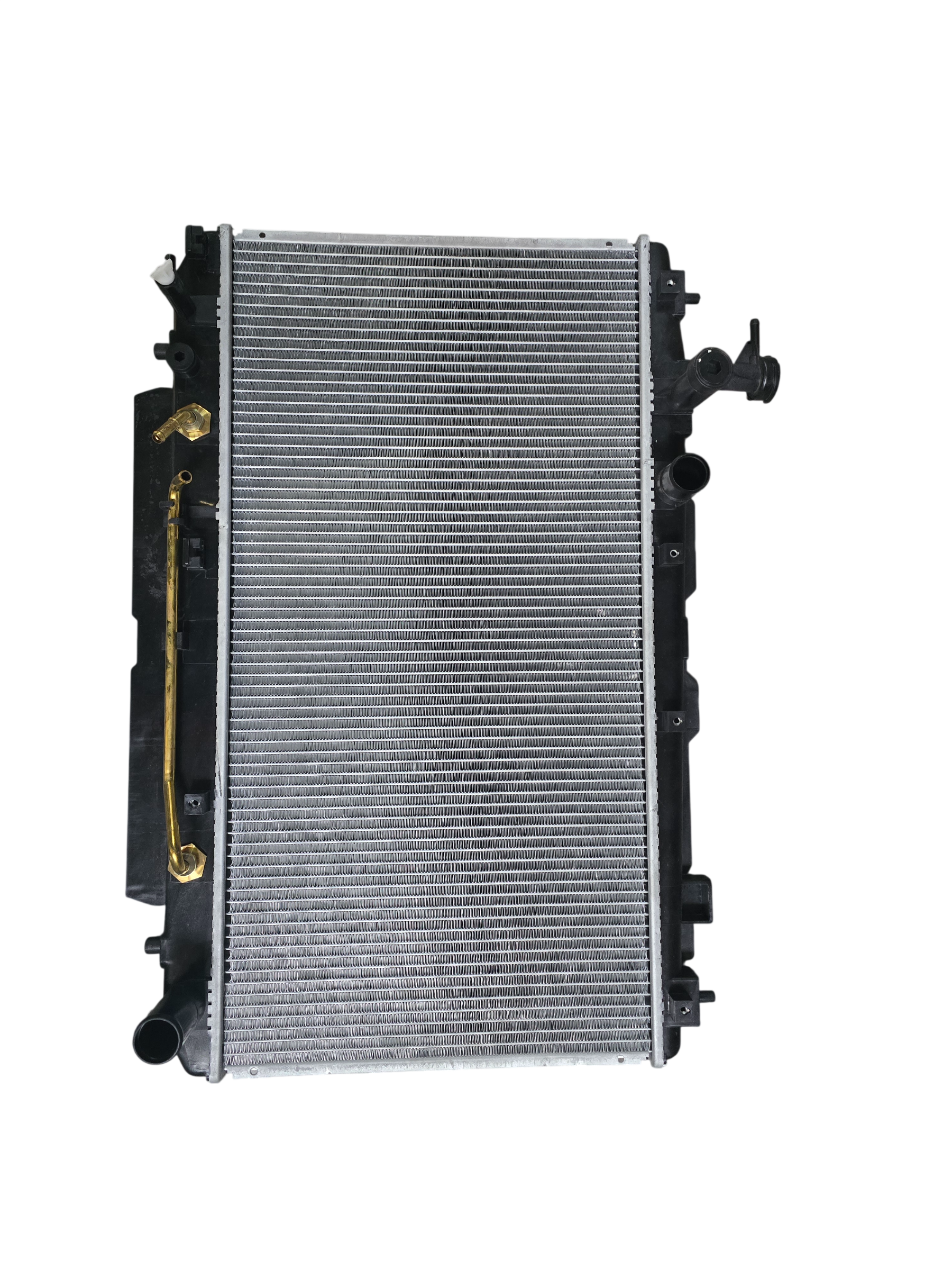

This Kiwami KRA20155 replacement radiator is designed for compatible Toyota RAV4 ACA20R, ACA21R, ACA22R and ACA23R models built from 2000 to 2005 with an automatic transmission. Featuring a 16mm core and straight fitting configuration, it is suitable for replacing a leaking, damaged, blocked or overheating radiator.

This listing is specifically for the straight fitting radiator. For RAV4 models with an angle fitting, please refer to KRA20153 instead. Confirm your VIN, original radiator hose/fitting layout, transmission type and radiator dimensions before ordering.

Key Features

• Kiwami replacement radiator
• Part number: KRA20155
• Suitable for compatible Toyota RAV4 ACA20R–ACA23R models
• Listed for 2000–2005 vehicle applications
• Suitable for automatic transmission vehicles
• 16mm core specification
• Straight fitting radiator configuration
• Direct replacement-style cooling component
• Helps restore proper engine cooling performance
• Professional installation recommended

Vehicle Compatibility

This part is listed for:

• Make: Toyota
• Model: RAV4
• Series Codes: ACA20R / ACA21R / ACA22R / ACA23R
• Year Range: 2000–2005
• Transmission: Automatic
• Fitting Type: Straight Fitting
• Part Type: Radiator
• Core Thickness: 16mm
• Brand: Kiwami
• Part Number: KRA20155

Fitment information is provided as a guide only. Toyota RAV4 radiators can vary depending on build date, engine, transmission configuration, hose outlet position and fitting arrangement. Please provide your VIN if you would like us to confirm compatibility before purchase.

Straight Fitting vs Angle Fitting

This product is the straight fitting version of the radiator.

• Straight fitting radiator: KRA20155
• Angle fitting radiator: KRA20153

Before ordering, compare the hose outlets and fitting arrangement on your existing radiator with the product images or provide your VIN for confirmation.

Kiwami Automatic Radiator Replacement Part

The radiator is a key component of the engine cooling system. It transfers heat away from the coolant to help maintain stable engine operating temperatures during everyday driving.

A worn or damaged radiator can cause coolant leaks, overheating, low coolant levels, corrosion, blocked cooling passages or poor heater performance. Replacing the correct radiator helps restore cooling efficiency and reduce the risk of overheating-related engine damage.

Part Details

• Product: Automatic Transmission Radiator
• Vehicle: Toyota RAV4
• Series Codes: ACA20R / ACA21R / ACA22R / ACA23R
• Year Range: 2000–2005
• Transmission: Automatic
• Core Thickness: 16mm
• Fitting Type: Straight Fitting
• Brand: Kiwami
• Part Number: KRA20155
• Condition: New replacement part
• Installation: Professional installation recommended

Cross Reference Numbers

• Kiwami: KRA20155
• JR Reference: JR2701J
• Aftermarket Reference: TOY057PACAK
• Aftermarket Reference: TY171C1

Frequently Asked Questions

Does this fit all Toyota RAV4 models from 2000 to 2005?

Not necessarily. This radiator is listed for compatible Toyota RAV4 ACA20R, ACA21R, ACA22R and ACA23R automatic models with a straight fitting configuration. Please confirm your VIN and original radiator layout before ordering.

How do I know whether I need the straight or angle fitting radiator?

Compare the hose outlet and fitting arrangement on your original radiator against the product images. This listing is for the straight fitting version, KRA20155. For an angle fitting, use KRA20153.

Is this suitable for manual transmission vehicles?

No. This radiator is listed for automatic transmission applications. Automatic radiators can have transmission-cooler fittings that manual vehicles do not require.

What does 16mm core mean?

The 16mm core refers to the approximate thickness of the radiator cooling core. Compare your original radiator dimensions, mounting points and hose positions before purchase.

Does this include fans, hoses or coolant?

No. This listing is for the radiator only unless otherwise stated. Cooling fans, hoses, radiator cap, coolant and mounting hardware are generally sold separately.

Can you confirm fitment using my VIN?

Yes. Send us your VIN and we can compare the required radiator specification against this item before dispatch.
